• Cylindrical, mortise or exit trim locking options
• PIN, PROX or dual credential access
• Single or multiple access codes
• Easy-to-use software available to simplify management of doors and access users
• Available features include audit trails, access schedules, remote unlock passage and privacy

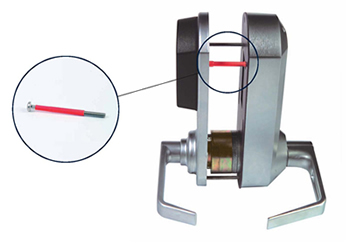

• Quick and easy through-bolt installation � no wiring to or through the door

• Master level � can perform all setup and programming functions
• Manager / Maintenance level � can administrate common programming functions
• Authorized access user level
• Service level � codes for single event or single day access
• Visitor management � for access up to one- year with expiry (E-Plex 5200 and 5700) Programmable Lock Functions
• Entry lock � normally locked, passage mode can be activated by authorized operator
• Storeroom lock � normally locked, passage mode deactivated
• Residence lock � remains in passage until locked from interior with deadbolt or exterior key command
• Privacy lock � activated from inside, restricts entry to privileged master or manager level user, or key override
• Remote unlock (optional) � from up to 100 feet away Easy-to-Use Software
• Simplifies management of doors and access users
• Match each door and user�s access requirement to security needs
• Point and click software lets you manage users
• Settings are easily cloned permitting quick multi-lock set-ups
• Up to 32 holiday and vacation blocks (E-Plex 5200 and 5700)
• Up to 16 access schedules (E-Plex 5200 and 5700) Wireless Communication
• No cables are needed to upload and download your data
• Communicates through infrared data transfer function of a handheld PDA (personal digital assistant)
• Fully contained E-Plex electronics module eliminates repair hassles

• Single credential (PIN) access
• Passage
• Lockout

• Universal Exit Trim Mount � fits most leading brands of exit devices
• Installs easily on wood or metal doors

• 1⁄2� (13mm) throw latch, floating face plate
• optional 3⁄4� (19mm) throw latch, beveled face plate
• 23⁄4� (70mm) backset

Mortise (available on E-Plex only)

• ASM with 1� (25mm) or 11⁄4� (32mm) faceplate; with and without deadbolt

Rim Exit Device Trim

• Cylindrical: 13⁄8� (35mm) to 21⁄4� (57mm)
• Mortise: 13⁄4� (44mm) to 21⁄4� (57mm)
• Exit Trim: 13⁄4� (44mm) to 21⁄4� (57mm)
• Pre-assembled to accommodate doors 15⁄8� (41mm) to 2� (51mm)
• Hardware kits included to accommodate thin and thick doors

Non-handed / Field reversible

• Pre-assembled for left-hand door installations � easily changed in the field

Minimum Stile Required: 5� (127mm)

• Tailpieces included for compatibility with models by Abloy, Arrow, ASSA, Corbin Russwin, Kaba, Medeco, Sargent, Schlage and Primus (see catalog for specific model details)

Small Format Interchangeable Core

• Configured for Best and compatibles (6 or 7-pin length)

Large Format Interchangeable Cores

• Available configurations for Schlage, Medeco, ASSA, Yale (6 pin), Sargent and Corbin Russwin

• Provides quick and easy battery replacements for institutions
• Lock data is retained if batteries fail
• Long battery life � up to 180,000 cycles

• See BHMA Directory for listing of Grade 1 Certified Simplex and E-Plex Products.

• Front housing: -31�F (-35�C) to +151�F (66�C)
• Rear housing: -31�F (-35�C) to +130�F (55�C)

Customizable User Preferences (E-Plex models only)
